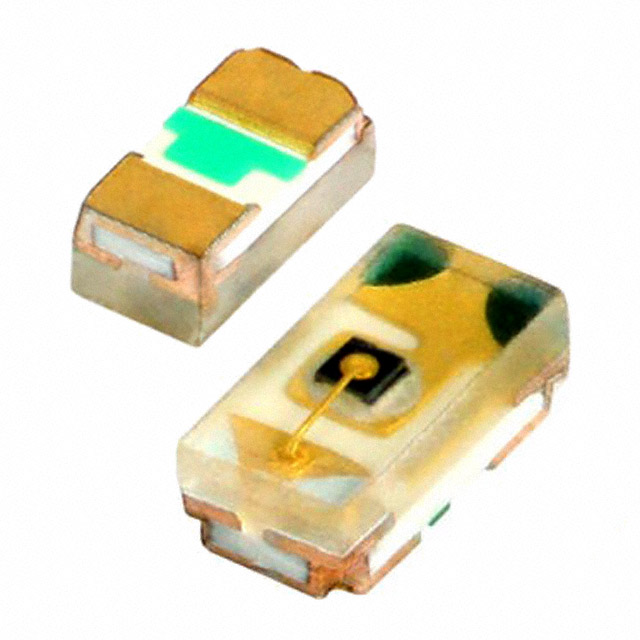

VLMS1500-GS08
Red 631nm LED Indication - Discrete 2V 0402 (1005 Metric)
Availability: In Stock
Package Type: 0402
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VLMS1500-GS08 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VLMS1500-GS08
| Part Name | VLMS1500-GS08 |
| Manufacturer | Vishay Semiconductor |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 1 x 0.5 x 0.35 (mm) |
| Mounting Type | Surface Mount |
| Package Type | 1005 (0402) |
| Viewing Angle | ±65 ° |
| Led Colour S | Red |
| Forward Voltage (V) | 2.4 V |
| Luminous Intensity | 54 mcd |
| Dominant Wavelength | 631 nm |
| Number Of Leds | 1 |
| Lens Shape | Square |
| Number Of Pins | 2 |
